madler 氣動元件氣缸系列
| 陳聰霞 QQ：2850590593 手機：18518172431 電話：010-64717020-178 傳真：010-84786709-666 郵件：sales17@handelsen.cn |
 |
madler產品德國制造氣動元件氣缸系列
特點：活塞及活塞桿密封件為PUR，可以在潤滑或者無潤滑的介質中，帶有磁性活塞可以調節的雙向作用，帶有緩沖防撞系統ACS。
型號及特點：
madler品牌產品氣動元件標準氣缸U形夾：后置環首螺絲支架，用于端蓋上的安裝構件
madler品牌產品氣動元件輕巧型氣缸活塞桿：螺母材質為鍍鋅鋼，活塞桿上的安裝構件
madler品牌產品氣動元件缸筒上磁性開關：帶簧片觸點的磁性開關，支架的材質是塑料
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">

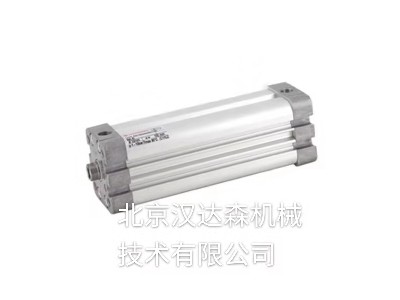

符合ISO15552的帶磁性活塞的雙重作用標準汽缸
材質：氣缸筒：陽極氧化鋁。端蓋：壓鑄鋁?；钊麠U：不銹鋼（鐵素
體），活塞及活塞桿密封件：PUR。O形環密封件：NBR。
介質：壓縮空氣，經過濾，潤滑或無潤滑。
標準：ISO15552。
操作模式：帶有磁性活塞可以調節的雙向作用，帶有緩沖防撞系統
ACS。
運行壓力：1-12巴
運行溫度：-20° C?+ 80°C （最大）
低于+ 2°C時請考慮空氣質量。
| 產品展示 | 數量 | 氣缸直徑 [mm] |
標準行程 [mm] |
連接器 | 定理。0.6 MPa時的剪切力 [N] |
定理。0.6 MPa時的彈簧力 [N] |
阻尼長度 [mm] |
阻尼能力 [cm³] |
E [毫米] |
L8 [毫米] |
0毫米時的重量 [kg] |
每25毫米重量 [kg] |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80132025 |  |
32 | 25 | G 1/8 | 482 | 414 | 20 | 12,8 | 47 | 94 | 0,49 | 0,06 | ||
| 80132050 | |
32 | 50 | G 1/8 | 482 | 414 | 20 | 12,8 | 47 | 94 | 0,49 | 0,06 | ||
| 80132080 | |
32 | 80 | G 1/8 | 482 | 414 | 20 | 12,8 | 47 | 94 | 0,49 | 0,06 | ||
| 80132100 | |
32 | 100 | G 1/8 | 482 | 414 | 20 | 12,8 | 47 | 94 | 0,49 | 0,06 | ||
| 80132125 | |
32 | 125 | G 1/8 | 482 | 414 | 20 | 12,8 | 47 | 94 | 0,49 | 0,06 | ||
| 80132160 | |
32 | 160 | G 1/8 | 482 | 414 | 20 | 12,8 | 47 | 94 | 0,49 | 0,06 | ||
| 80132200 | |
32 | 200 | G 1/8 | 482 | 414 | 20 | 12,8 | 47 | 94 | 0,49 | 0,06 | ||
| 80132250 | |
32 | 250 | G 1/8 | 482 | 414 | 20 | 12,8 | 47 | 94 | 0,49 | 0,06 | ||
| 80140025 | |
40 | 25 | G 1/4 | 754 | 633 | 22 | 20,2 | 53 | 105 | 0,69 | 0,08 | ||
| 80140050 | |
40 | 50 | G 1/4 | 754 | 633 | 22 | 20,2 | 53 | 105 | 0,69 | 0,08 | ||
| 80140080 | |
40 | 80 | G 1/4 | 754 | 633 | 22 | 20,2 | 53 | 105 | 0,69 | 0,08 | ||
| 80140100 | |
40 | 100 | G 1/4 | 754 | 633 | 22 | 20,2 | 53 | 105 | 0,69 | 0,08 | ||
| 80140125 | |
40 | 125 | G 1/4 | 754 | 633 | 22 | 20,2 | 53 | 105 | 0,69 | 0,08 | ||
| 80140160 | |
40 | 160 | G 1/4 | 754 | 633 | 22 | 20,2 | 53 | 105 | 0,69 | 0,08 | ||
| 80140200 | |
40 | 200 | G 1/4 | 754 | 633 | 22 | 20,2 | 53 | 105 | 0,69 | 0,08 | ||
| 80140250 | |
40 | 250 | G 1/4 | 754 | 633 | 22 | 20,2 | 53 | 105 | 0,69 | 0,08 | ||
| 80150025 | |
50 | 25 | G 1/4 | 1178 | 990 | 24 | 36.0 | 65歲 | 106 | 1,09 | 0,12 | ||
| 80150050 | |
50 | 50 | G 1/4 | 1178 | 990 | 24 | 36.0 | 65歲 | 106 | 1,09 | 0,12 | ||
| 80150080 | |
50 | 80 | G 1/4 | 1178 | 990 | 24 | 36.0 | 65歲 | 106 | 1,09 | 0,12 | ||
| 80150100 | |
50 | 100 | G 1/4 | 1178 | 990 | 24 | 36.0 | 65歲 | 106 | 1,09 | 0,12 | ||
| 80150125 | |
50 | 125 | G 1/4 | 1178 | 990 | 24 | 36.0 | 65歲 | 106 | 1,09 | 0,12 | ||
| 80150160 | |
50 | 160 | G 1/4 | 1178 | 990 | 24 | 36.0 | 65歲 | 106 | 1,09 | 0,12 | ||
| 80150200 | |
50 | 200 | G 1/4 | 1178 | 990 | 24 | 36.0 | 65歲 | 106 | 1,09 | 0,12 | ||
| 80150250 | |
50 | 250 | G 1/4 | 1178 | 990 | 24 | 36.0 | 65歲 | 106 | 1,09 | 0,12 | ||
| 80163025 | |
63 | 25 | G 3/8 | 1870年 | 1680 | 24 | 64,0 | 75 | 121 | 1,54 | 0,13 | ||
| 80163050 | |
63 | 50 | G 3/8 | 1870年 | 1680 | 24 | 64,0 | 75 | 121 | 1,54 | 0,13 | ||
| 80163080 | |
63 | 80 | G 3/8 | 1870年 | 1680 | 24 | 64,0 | 75 | 121 | 1,54 | 0,13 | ||
| 80163100 | |
63 | 100 | G 3/8 | 1870年 | 1680 | 24 | 64,0 | 75 | 121 | 1,54 | 0,13 | ||
| 80163125 | |
63 | 125 | G 3/8 | 1870年 | 1680 | 24 | 64,0 | 75 | 121 | 1,54 | 0,13 | ||
| 80163160 | |
63 | 160 | G 3/8 | 1870年 | 1680 | 24 | 64,0 | 75 | 121 | 1,54 | 0,13 | ||
| 80163200 | |
63 | 200 | G 3/8 | 1870年 | 1680 | 24 | 64,0 | 75 | 121 | 1,54 | 0,13 | ||
| 80163250 | |
63 | 250 | G 3/8 | 1870年 | 1680 | 24 | 64,0 | 75 | 121 | 1,54 | 0,13 | ||
| 80180025 | |
80 | 25 | G 3/8 | 3016 | 2722 | 26 | 111,0 | 95 | 128 | 2,64 | 0,20 | ||
| 80180050 | |
80 | 50 | G 3/8 | 3016 | 2722 | 26 | 111,0 | 95 | 128 | 2,64 | 0,20 | ||
| 80180080 | |
80 | 80 | G 3/8 | 3016 | 2722 | 26 | 111,0 | 95 | 128 | 2,64 | 0,20 | ||
| 80180100 | |
80 | 100 | G 3/8 | 3016 | 2722 | 26 | 111,0 | 95 | 128 | 2,64 | 0,20 | ||
| 80180125 | |
80 | 125 | G 3/8 | 3016 | 2722 | 26 | 111,0 | 95 | 128 | 2,64 | 0,20 | ||
| 80180160 | |
80 | 160 | G 3/8 | 3016 | 2722 | 26 | 111,0 | 95 | 128 | 2,64 | 0,20 | ||
| 80180200 | |
80 | 200 | G 3/8 | 3016 | 2722 | 26 | 111,0 | 95 | 128 | 2,64 | 0,20 | ||
| 80180250 | |
80 | 250 | G 3/8 | 3016 | 2722 | 26 | 111,0 | 95 | 128 | 2,64 | 0,20 |
